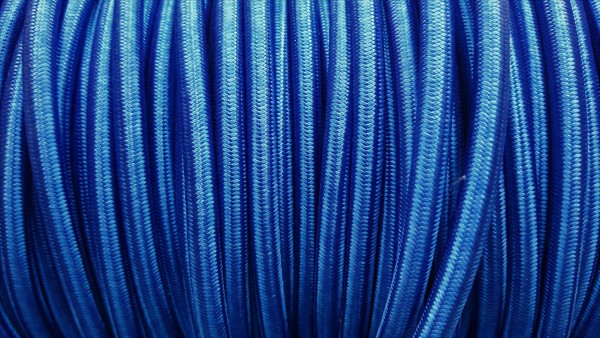

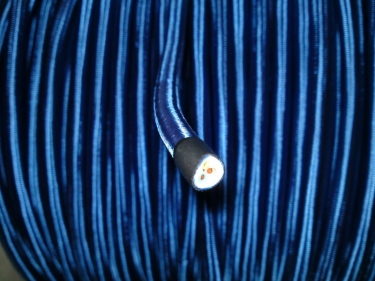

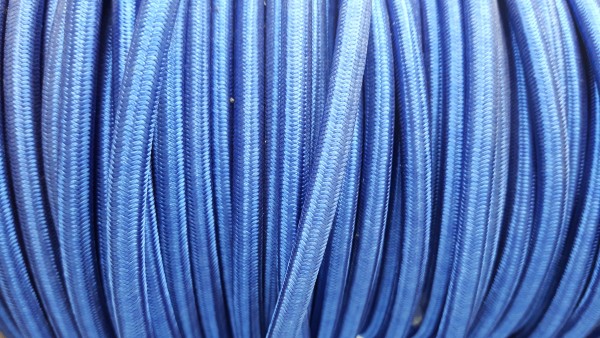

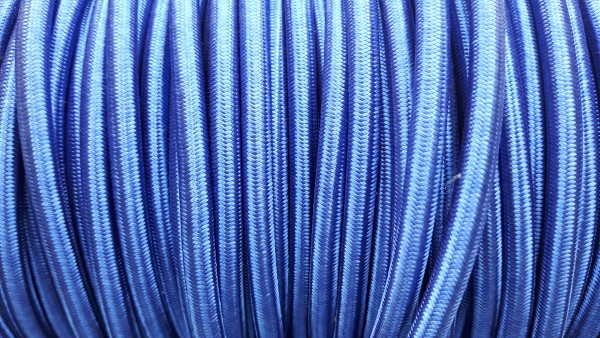

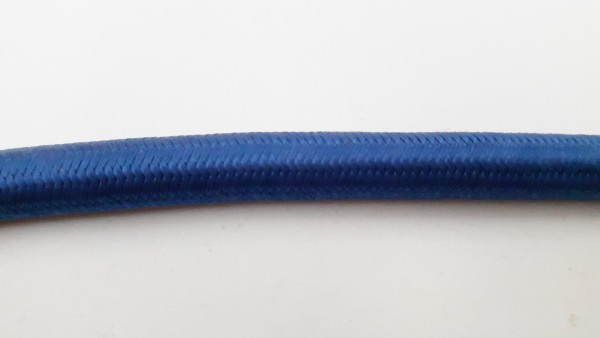

Round braided 3 core period silk flex royal blue 0.50mm electric cable

2 and 3 core 0.50mm round overbraid flex  0.50mm refers to the innercore
Total diameter is approx. 6mm - 3 amp rated

Please note 2 and 3 core 0.75mm round overbraid flex 0.75mm refers to the innercore
Total diameter is approx. 7mm - 6 amp rated

When choosing your electrical cable there are elements that must be taken into account; whether your lighting project requires 2 core or 3 core cable, the inner core required - 0.75mm or 0.50mm, wattage and ampage needed and the style of cable required.

Whilst we are a lighting company you may find our electrical cables appropriate for other projects, dependant on the cable chosen*.

• 2 core cable does not have an earth and comprises of the live and neutral conductors, coloured blue and brown

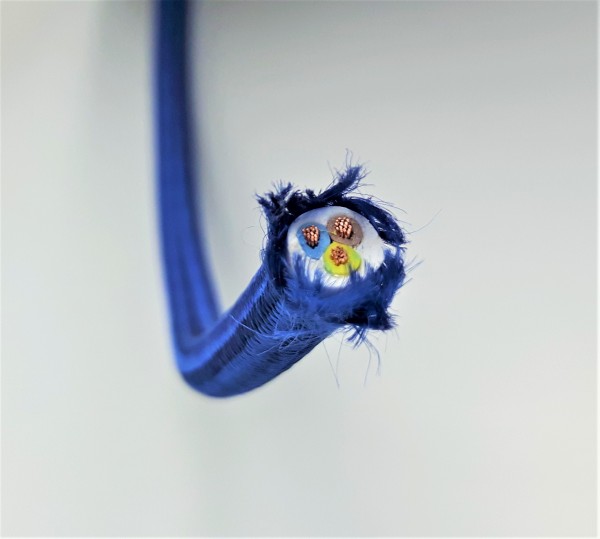

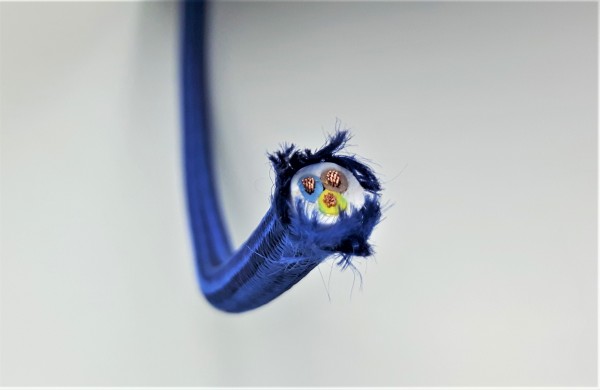

• 3 core cable comprises live, neutral and earth conductors - coloured brown for live, blue for neutral and yellow/green for earth
• 3 core clear cable - although this is a clear cable the earth is coloured - this is to meet legislation
• 0.50mm cable is 3 amp rate - up to 720 watts - individual length should not exceed 2 metres*
• 0.75mm cable is 6 amp rate - up to  1440 watts*
• Our 0.96mm mini clear cable is 6 amp rating - this cable is double insulated with a thin but extremely tough outer insulator - please note that this cable is not as flexible as some of our other cables
• braided and twisted, round and oval overbraid cables are designed to replicate period cables and to enhance modern and contempory projects

* For further information please visit http://www.rospa.com/home-safety/uk/northern-ireland/electricity/flexes-cables/flexes/



3 Core Round Electrical Cable

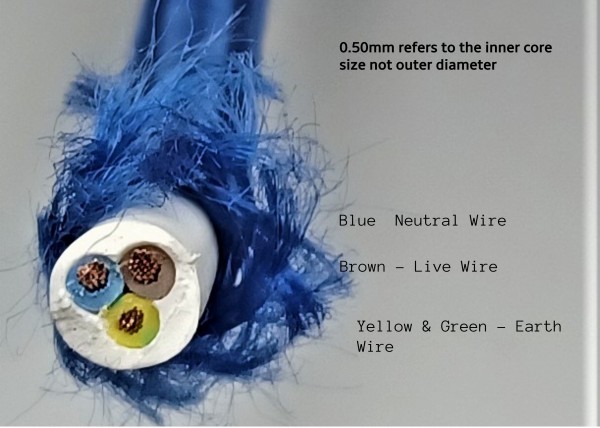

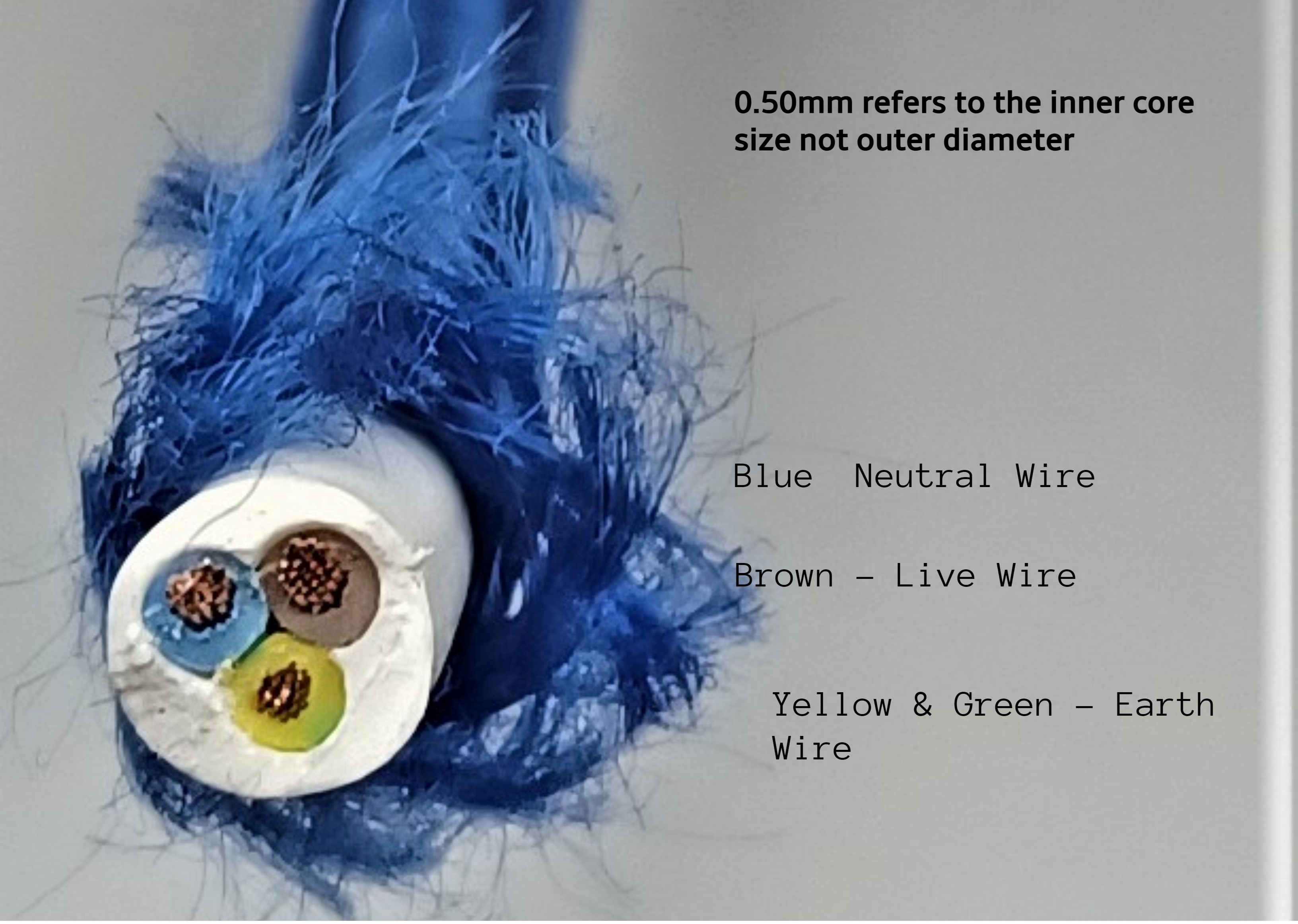

Our 3 core round electrical cable is predominately 0.50mm inner core (unless stated otherwise) the diagram to the left shows the individual core wires to assist with your wiring project.

The cable is 3 Amp and suitable for wattage up to 720 Watts



Braided round and oval flexible cable


Operating temperatures :	+70oC maximum conductor temperature
Operating voltage :	300 V
Relevant standard :	To BS6500 and harmonised HO5VV-F flex with outer decorative braid.
Core colours :	2 cores : brown, blue ; 3 cores : brown, blue, green/yellow.
	.
Performance :	Copper wire stranded as class 5. PVC insulated flexible PVC outer with textile decorative braid. Limited abrasion resistance of rayon outer braiding.
Applications :	These cables are designed for period style, restoration work on lighting and electrical appliances. Also suitable for modern light fittings which are not complimented by plain PVC flex
