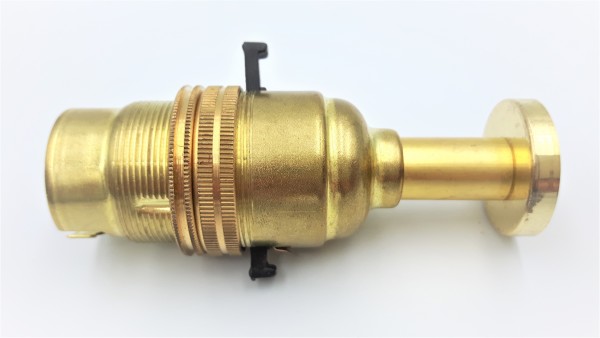

Brass B22 pedestal Switched lamp holder.  B22 Brass finish, choice of heights   Available in other finishes please see related products
10mm thread screw wire wire terminals.
Switched 3 part bulb lamp holder
Threaded skirt with shade ring.
10mm base thread with 1mm pitch
Choice of Heights:-

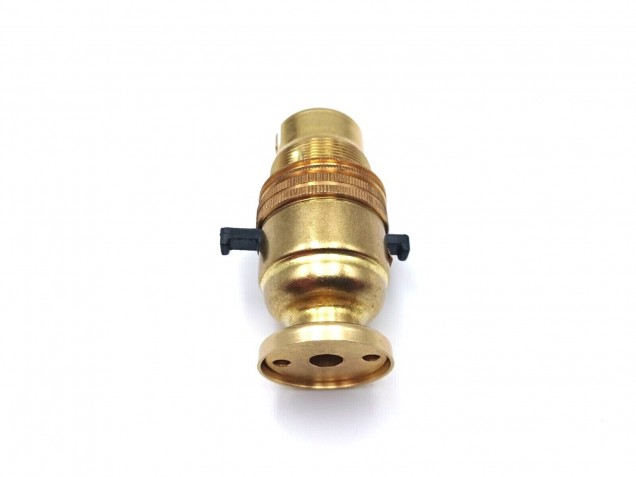

Small. has no stem, just a base plate. Total height 63mm

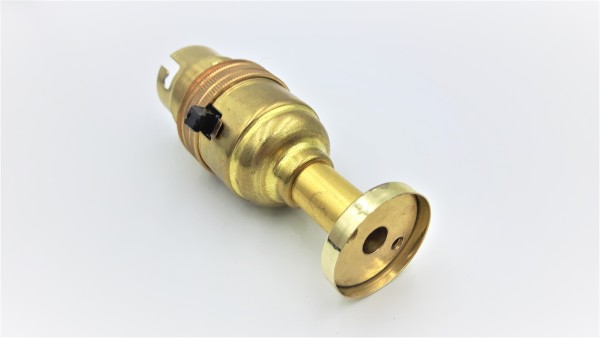

Medium. has a 20mm stem. Total height 85mm

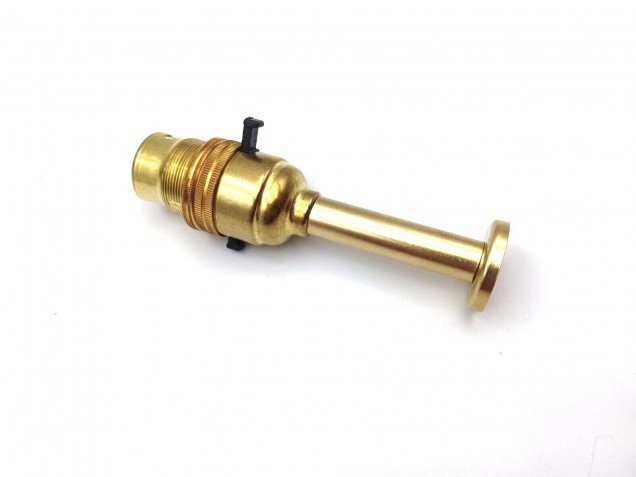

Large. has a 50mm stem. Total height 115mm

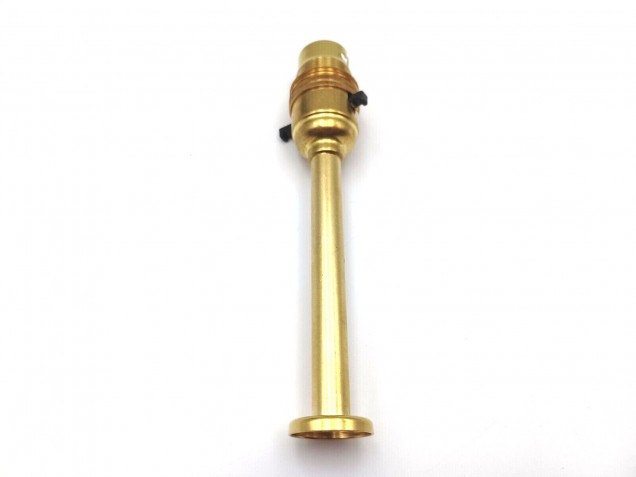

Extra large. has a 100mm stem. Total height 165mm

Width excluding the push bar 31mm

25mm base width with 3 fixing holes


Component Details:-

B22 Plated Brass switched 3 part lamp holder x 1no. :-
                                                                  Push wire terminals 3 core
                                                                  Lamp holder safety feature so will not operate until a light bulb is inserted
                                                                  10mm thread with 1mm pitch
                                                                  Threaded skirt with shade ring
                                                                  Lamp holder height 60mm

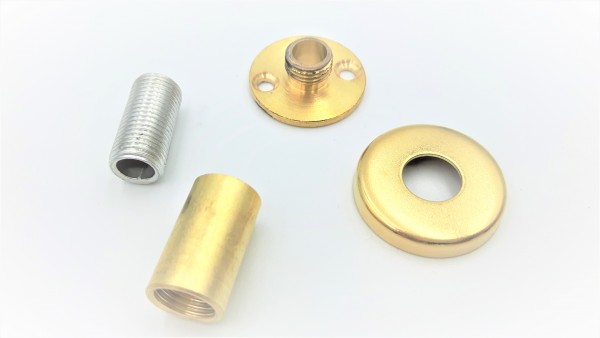

M10 Threaded Rod  x 1no.
Brass Couple M10  x 1no.
Brass nut cover plate x 1no.
Brass mounting plate 25mm wide x 1no.


Some of our switched lamp holders have an additional safety feature which will mean that you will not be able to operate the on/off push bar without a light bulb inserted into the lamp holder.  Please see our video showing this safety feature

Certified to BS EN 61184:2017

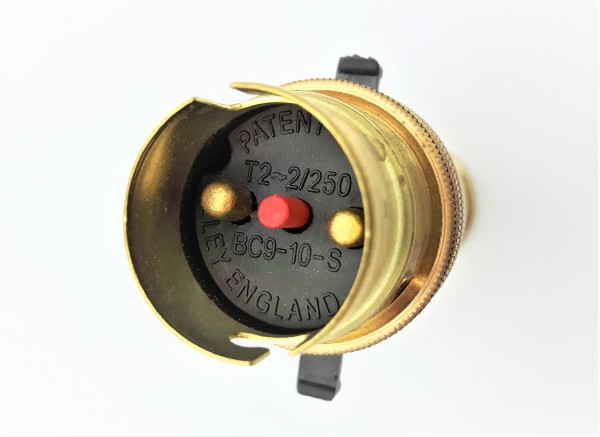

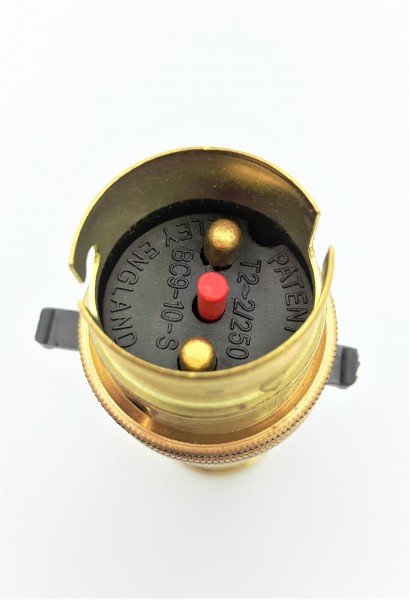

Safety switched interior (red pin)
