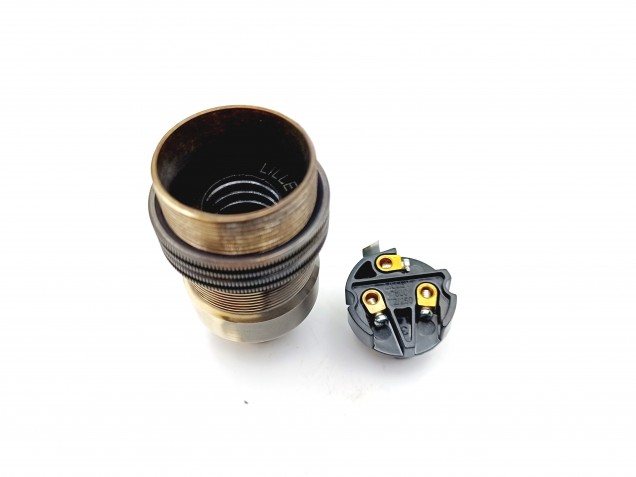

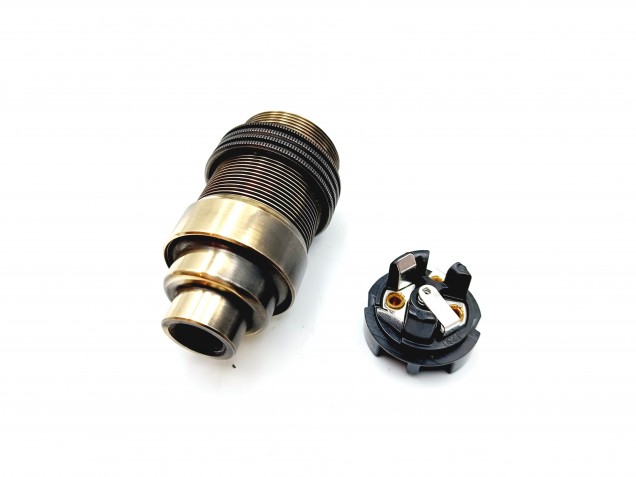

E14 Small Edison screw bulb holder,SES, solid brass Brushed Antique finish, threaded skirt with 2 shade rings

Earthed (internal)

3 core screw in terminals

M10 metric base thread entry, thread 1mm pitch, female threaded entry with locking screw

Max. height 54mm

Max. width including shade rings 32mm

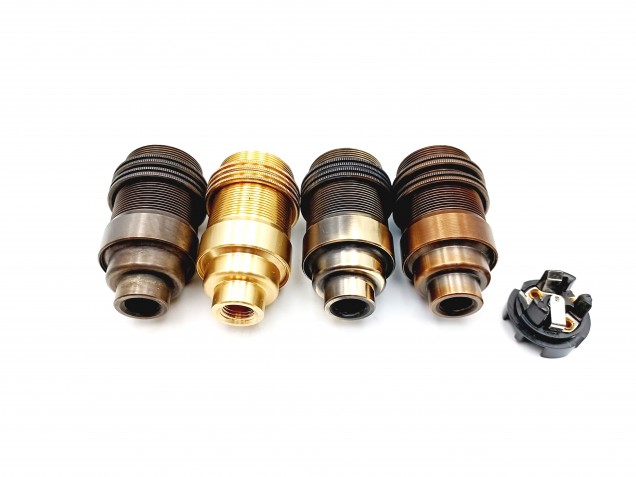

Other finishes available which are shown in the last photo - For Information only this listing is for the Brushed Antique Version

Certified to BS EN 60238:2018 + A11:2021

UK manufactured





FAQS - These are some of the frequent questions we are asked about our ranges of lamp holders

Q) Which bulb should I use for my lamp holder
A)  https://kingschandeliers.wordpress.com/2016/07/29/choosing-the-correct-lamp-holder-or-light-bulb/

Q) I have purchased a 10mm threaded lamp holder but it will not fit the 10mm thread on my light fitting
A)  All our lamp holders are a metric thread so if  this does not fit you may have an Imperial thread.

Q) My lamp holder starts to come loose when I remove my light bulb,  how can I stop this from happening?
A) If your lamp holder has a locking nut (we will include this information in the item description) tighten the locking nut and this will resolve this issue.  If your lamp holder does not have a locking nut screw a nut on to the threaded rod and then screw your lamp holder down tight to the nut, when you next need to remove your light bulb the lamp holder will remain firmly in place

Q) I have locked my Edison Screw lamp holder  how do I unlock it?
A)  We have produced a video showing how to  release your lamp holder https://www.youtube.com/watch?v=Nwf4xBuR4Zw

Q) Which terminal is the live terminal and which is the neutral?
A) As long as the earth cable is wired in correctly to the earthing point which will be indicated by an earth symbol it does not matter which terminal is used for the live and neutral
